Dropping Funnels
Dropping funnels are laboratory glassware designed for the controlled addition of liquids to reactions or solutions. They typically feature a cylindrical or conical body with a graduated scale, a stopcock for precise flow control, and a ground glass joint for secure attachment to other apparatus. Made from borosilicate glass, they are ideal for tasks requiring careful reagent addition.
Specifications
- Material: Made from borosilicate glass for thermal resistance and chemical durability.
- Capacity: Available in sizes ranging from 50 ml to 500 ml, suitable for various reaction scales.
- Stopcock: Equipped with a PTFE or glass stopcock for accurate and controlled liquid dispensing.
- Design: Features a cylindrical or conical body with a graduated scale for precise volume measurement.
Dropping Funnel With Glass Stopcock
| Product Code | Size (ml) |
|---|---|
| 153.202.02 | 50 |
| 153.202.03 | 100 |
| 153.202.06 | 1000 |
Dropping Funnel With PTFE Stopcock Graduated
| Product Code | Size (ml) |
|---|---|
| 154.203.02 | 50 |
| 154.203.03 | 100 |
| 154.203.04 | 250 |
Dropping Funnel With Glass Stopcock And Cone
| Product Code | Socket | Size (ml) |
|---|---|---|
| 165.202.02 | 14/23 | 50 ml |
| 165.202.02A | 29/32 | 50 ml |
| 165.202.03 | 14/23 | 100 ml |
| 165.202.05A | 29/32 | 250 ml |
| 165.202.06A | 29/32 | 500 ml |
| 165.202.07A | 29/32 | 1000 ml |
Dropping Funnel With Glass Stopcock And Stem Inside Cone
| Product Code | Socket | Size (ml) |
|---|---|---|
| 165.210.02 | 14/23 | 50 ml |
| 165.210.02A | 29/32 | 50 ml |
| 165.210.03 | 14/23 | 100 ml |
| 165.210.03A | 29/32 | 100 ml |
| 165.210.05 | 29/32 | 250 ml |
| 165.210.06 | 29/32 | 500 ml |
| 165.210.07 | 29/32 | 1000 ml |

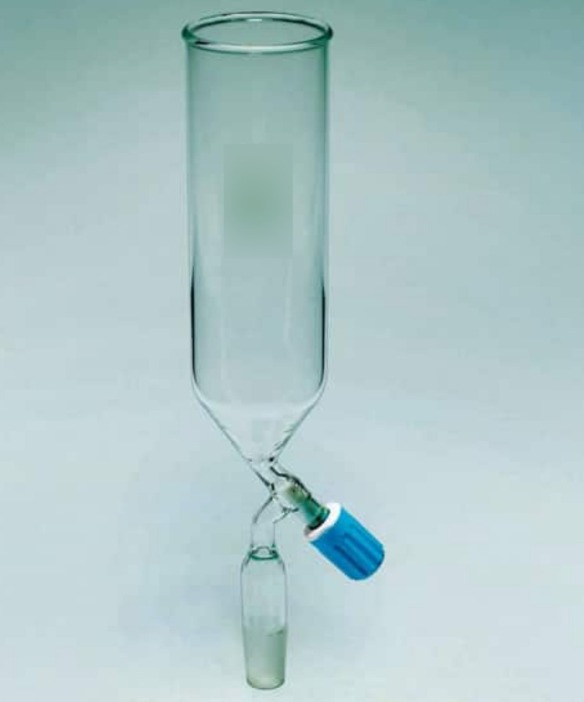

Dropping Funnel Open Top With Rotaflow Stopcock And Cone
| Size (ml) | Cone Size |
|---|---|
| 100 | 19/26 |
| 250 | 19/26 |
| 250 | 24/29 |
Dropping Funnel With Socket, Plastic Stopper And Rotaflow Stopcock
| Size (ml) |
|---|
| 100 |
| 250 |
Dropping Funnel With Rotaflow Stopcock And Cone
| Product Code | Socket | Size (ml) |
|---|---|---|
| 166.202.02 | 14/23 | 50 ml |
| 166.202.02A | 29/32 | 50 ml |
| 166.202.03 | 14/23 | 100 ml |
| 166.202.03A | 19/26 | 100 ml |
| 166.202.03AB | 29/32 | 100 ml |
| 166.202.03A | 19/26 | 250 ml |
| 166.202.05AB | 29/32 | 250 ml |
| 166.202.06A | 29/32 | 500 ml |
| 166.202.07A | 29/32 | 1000 ml |

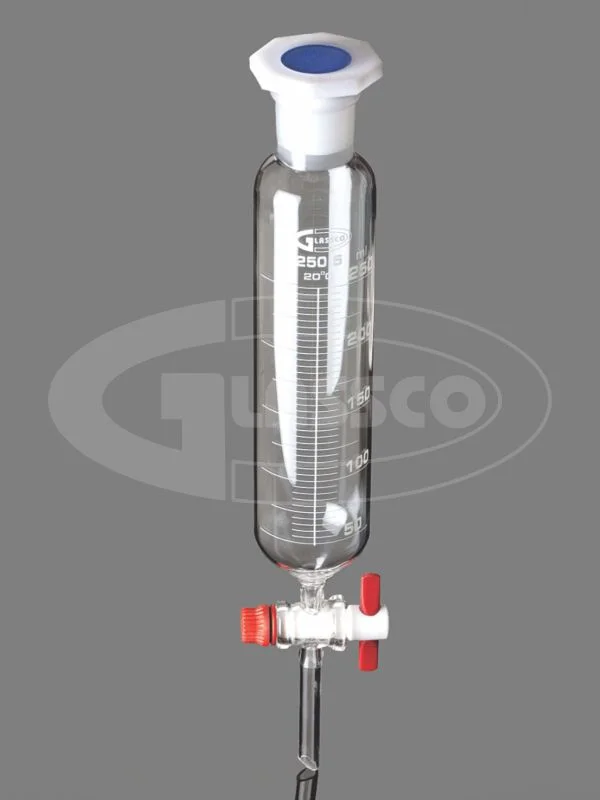

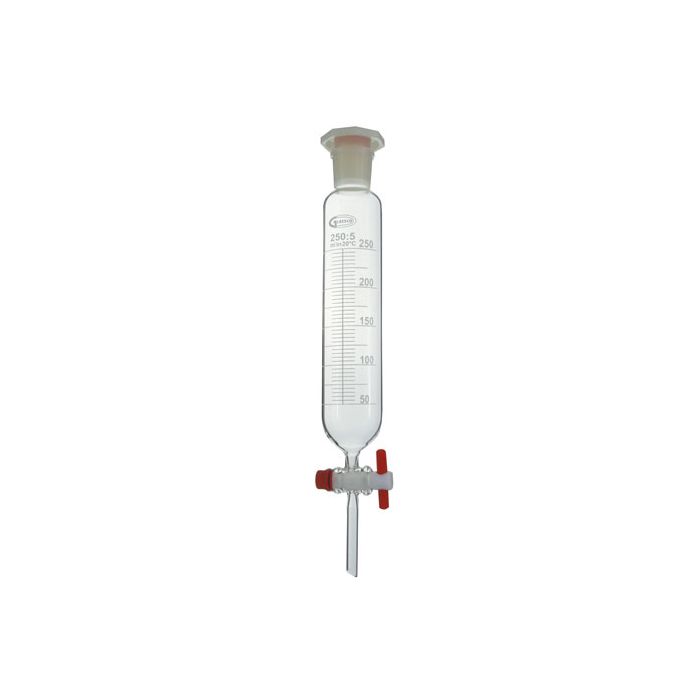

Dropping Funnel Graduated With PTFE Stopcock
| Size (ml) |
|---|
| 25 |
| 50 |
| 100 |
| 250 |
| 500 |
Dropping Funnel With PTFE Stopcock And Cone
| Product Code | Socket | Size (ml) |
|---|---|---|
| 167.202.02 | 14/23 | 50 ml |
| 167.202.02A | 29/32 | 50 ml |
| 167.202.03 | 14/23 | 100 ml |
| 167.202.03A | 29/32 | 100 ml |
| 167.202.05A | 29/32 | 250 ml |
| 167.202.06A | 29/32 | 500 ml |
| 167.202.07A | 29/32 | 1000 ml |
Dropping Funnel With PTFE Stopcock And Stem Inside Cone
| Product Code | Socket | Size (ml) |
|---|---|---|
| 167.210.02 | 14/23 | 50 ml |
| 167.210.02A | 29/32 | 50 ml |
| 165.210.03 | 14/23 | 100 ml |
| 167.210.03A | 29/32 | 100 ml |
| 167.210.05 | 29/32 | 250 ml |
| 167.210.06 | 29/32 | 500 ml |
| 167.210.07 | 29/32 | 1000 ml |
