Hydrothermal Autoclave
A hydrothermal autoclave is a high-pressure, high-temperature reaction vessel used primarily for synthesizing crystals, nanomaterials, and other advanced compounds under hydrothermal conditions. Typically made from stainless steel with a Teflon-lined inner chamber, it ensures safe containment of reactive mixtures and allows precise control of synthesis parameters in laboratory research.
Specifications
- Material: Outer body made from high-grade stainless steel; inner chamber lined with PTFE/Teflon for chemical resistance.
- Temperature Range: Typically operable up to 220–250°C depending on model and lining.
- Pressure Capacity: Withstands internal pressures up to 3 MPa (≈30 bar) for hydrothermal reactions.
- Sizes: Common volumes include 25 mL, 50 mL, 100 mL, and 200 mL; custom sizes available.
Hydrothermal Autoclave With PTFE Vessel
| Product Code | Spec. |
|---|---|
| HAF-01 | 50 ml |
| HAF-02 | 100 ml |
| HAF-03 | 150 ml |
| HAF-04 | 250 ml |
| HAF-05 | 500 ml |

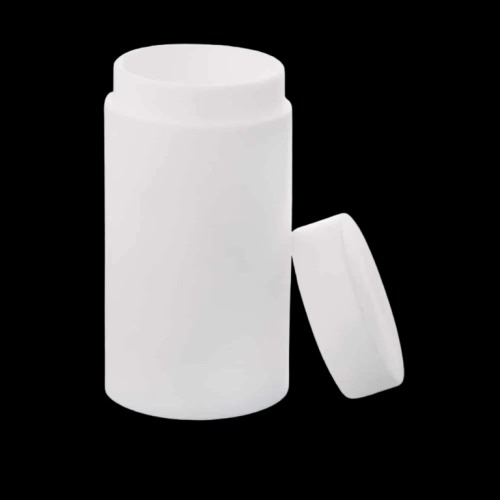

PTFE Vessel for Hydrothermal Synthesis Autoclave Reactor
| Product Code | Spec. |
|---|---|
| VB-01 | 50 ml |
| VB-02 | 100 ml |
| VB-03 | 150 ml |
| VB-04 | 250 ml |
| VB-05 | 500 ml |
| VB-06 | 1000 ml |
